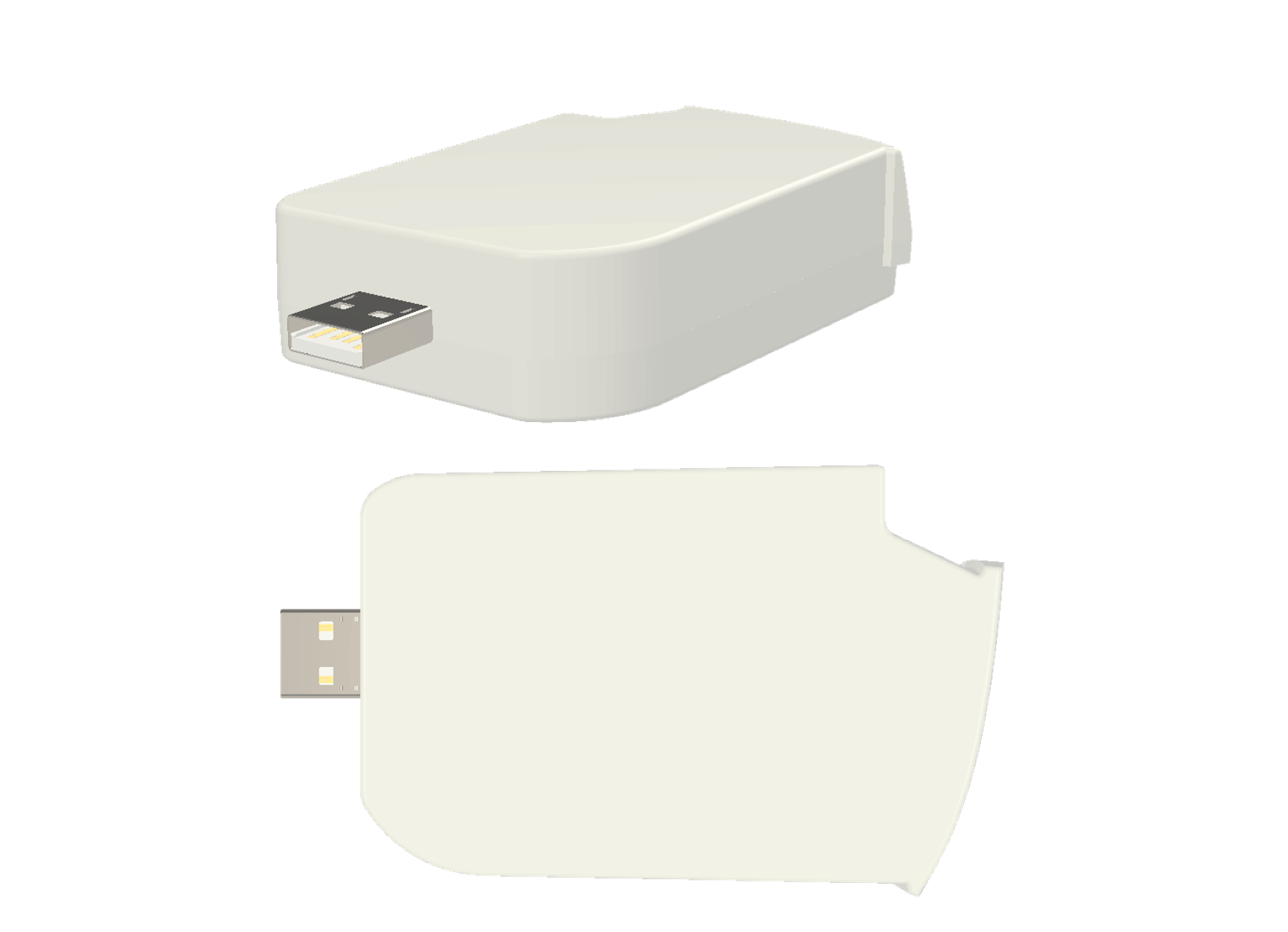

USB Connect 4G
The USB Connect 4G IoT modem stick was developed for the industrial Internet of Things. This IoT dongle enables easy connection of data sources with their own data acquisition and processing to cloud environments. The modem provides LTE connectivity with up to 150 Mbit/s download and 50 Mbit/s upload. This means that even larger amounts of data can be efficiently transferred to cloud environments worldwide via the 4G connection. The device has 2 integrated diversity antennas for a secure data connection. It can be easily integrated with the USB-A connector.
Supported Features
- 3GPP Release 10 LTE Cat 4
- Small USB-dongle form factor
- Integrated antennas
Supported operating systems
- Linux
- Windows 10
Product variants
- USB Connect 4G – EU (Europe): Frequency bands: B1, B3, B7, B8, B20, B28A
- USB Connect 4G – NF (America): Frequency bands: B2, B4, B12, B66
- USB Connect 4G – AP (Asia Pacific): Frequency bands: B1, B3, B5, B8, B9, B19, B28
Typical applications
- Collection of sensor data
- Industrial or environmental monitoring
- Connectivity for smart city applications
- eHealth
- Predictive maintenance
- Metering
- Smart building sensors
- Network monitoring & troubleshooting
